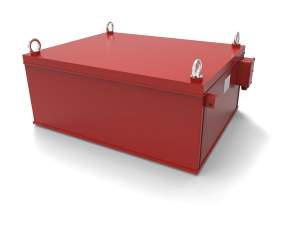

Electro Suspension Magnet is engineered for use in high volume and deep burden applications. Their primary advantages are their "deep reach" and the ability to be turned on and off. Mounted over a vibratory bed or belt conveyor, these suspension electro magnets set the industry standard for strength. The renowned manufacturer supplier and exporter Shree Vishwakarma Magnets suspension magnet is a quality equipment with sales being, India but globally. As the need for ferrous separation increases sales of suspension magnet also escalates as they are known for trouble free installation.
SUSPENSION ELECTRO MAGNET:
Electro Suspension Magnet consisting of aluminum or copper wound coils immersed in a transformer oil (for prevention of overheating or shorting) or air-cooled for extreme or dusty environments. All electro suspension magnets come along with control panel. Operating heights up to 150 mm to 450 mm are available. Manually cleaned Suspension Electro Magnet can be supplied with a stripper mechanism. No power consumption, virtually maintenance free.
SVM Model | Magnet Dimensions mm | Magnet Height mm | Magnet Voltage VDC | Magnet Wattage | Approx Weight Kgs |
SVM 241 | 600 X 600 | 550 | 115 | 1650 | 430 |
SVM 301 | 750 X 750 | 650 | 115 | 2700 | 700 |
SVM 361 | 900 X 900 | 500 | 115 | 3800 | 1050 |
SVM 422 | 1050 X 1050 | 550 | 230 | 5000 | 1600 |
SVM 482 | 1200 X 1200 | 600 | 230 | 6600 | 2250 |
SVM 542 | 1350 X 1350 | 650 | 230 | 8000 | 3150 |
SVM 602 | 1500 X 1500 | 750 | 230 | 10000 | 4000 |
SVM 662 | 1650 X 1650 | 800 | 230 | 12250 | 5200 |
SVM 722 | 1800 X 1800 | 800 | 230 | 14500 | 7250 |
SVM 782 | 2000 X 2000 | 900 | 230 | 17000 | 9100 |
