Deep Reach Separator

Call Now
963XXXX111
AvailabilityIn Stock
CategoryMagnet
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Deep Reach Separator Details

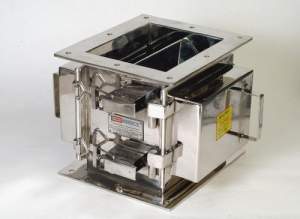

Shree Vishwakarma Magnets a deep reach separator which is fabricated in heavy material as standard and it is supplied complete with heavy duty plate magnet fitted. Our deep reach separator combines an open-throat, choke-free design with the safety and convenience of hinged magnets that swing out and away from the housing for safe external cleaning.

Deep-reach separators use a plate-magnet-style circuit but incorporate it into a vertical chute. Two large magnet assemblies are affixed to opposite sides of a stainless-steel chute and attract ferrous contamination as material flows by the chute. The magnetic circuit is designed for an exceptionally deep reach into the product flow, which makes these separators effective at removing large, chunky tramp metal. It works well when sticky products do not readily flow down sloped chutes. It is ideal for use in powdery, lumpy or moist materials when large tramp metal like nuts or bolts threaten production or product purity.

Application

  • Food industries like Tea, Spices, Coffee, Cocoa, Milk Powder etc.
  • Tobacco
  • Chemicals
  • Plastic
  • Flour Mill
  • Foundry Sand
  • Cattle Feed Materials
  • Minerals
  • Detergents
  • Fertilizers
  • Pharmaceuticals

Features

  • Easy handling by this open-throat design, while maintaining production rates.
  • Hinged magnets open for easy cleaning.
  • Maintenance Free.
  • Also available in self-cleaning model.
  • Centered deflector ensures product is directed toward the permanent magnet face
  • High Durability.
  • Customized sizes available as per customer's requirement.
